BASIC INFORMATION |
|
Type | Thermal printer |
Part Number (P/N) | POS2117 |
Model | FTP-80C-3 |
Printing Mode | Direct Thermal |
Printing Speed | 260mm/seg |
Cutting type | Automatic Partial cutting |
SPECIFICATIONS |
|
Basic characteristics |
|
Printing Mode | Thermal direct |
Printing speed | 260mm/sec |
Printing Length | 80mm |
Cutting type | Automatic Cutting |
Resolution | 203x203 DPI |
NV Flash Buffer | 256k bytes |
Input Buffer | 128k bytes |
Interfaces | USB, RS232 |
Sensors | Paper end | Open cover - light and beep |
Driver | Windows XP/Vista/7/8/8.1/10, Linux, OPOS |
Emulations | ESC/POS/TM88 |
Printing Fonts |
|
Fonts |
Fonte A: 12x24 dots ; Fonte B: 9x17 dots; Simplified/Traditional |
Barcode | UCP-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)/CODABAR/ITF/CODE39/CODE93/CODE128 |
Paper |
|
Paper type | Thermal paper |
Size | 80mm |
Paper thickness | 0.07mm |
Roll diameter | 83mm |
Reliability |
|
Print head lifetime | 100Km |
Cut mechanism | 700.000 cuts |
MCBF | 60.000.000 lines |
Other |
|
Dimensions (LxWxH) | 198x148x128mm |
Operating temperature | Standbye: -20ºC~60ºC | Running: 0ºC~50ºC |
Humidity | 10~90% |
Power Supply | DC 24V/2.5A |
Certification |
CE|FCC|MIC|ROHS |

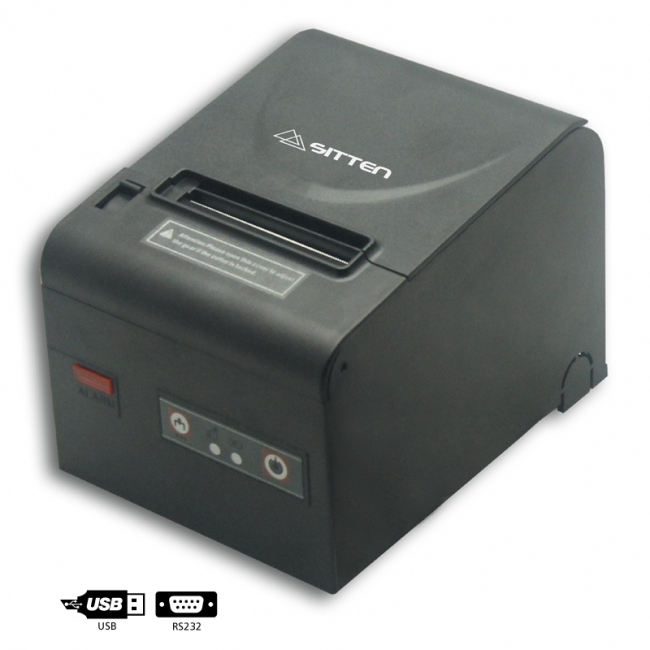

Observation: the images are presented for the sake of the illustration. The commercialized equipment may vary according to the aesthetics and tecnical
updates of the products.
