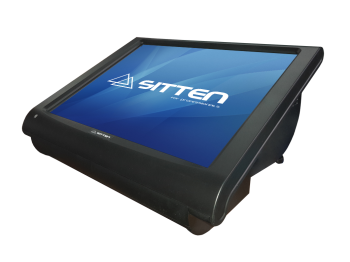

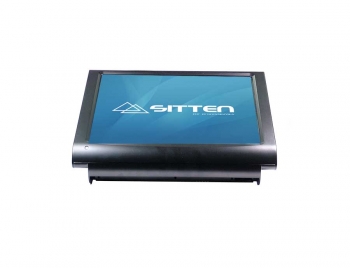

POS-3520D2

All-in-one

15" Touch Screen, Atom D525, 2GB, 500GB HDD, 80mm Thermal Printer, VFD Client Display.


Request for Information
Download - Datasheet-3520D2 Download - Ficha Técnica - POS-3520D2


BASIC INFORMATION
Type Terminal POS All-in-One
Part Number (P/N) POS1064
EAN 5600865270638
Model 3520D2
Color Black
Touchscreen 15" TFT Touchscreen
OS Compatibility Win XP/XPE/POSReady2009/Win7/WEPOS/Linux
CPU Dual-Core Intel ® Atom ™ D525, 1.8GHz
Memory 2GB (extendable up to 4GB - 2slot)
Storage 500GB HDD 2.5 "SATA
Advantages


 		 Space profitability
Resistance and aesthetics
15" Touchscreen
VDF viewer incorporated

SPECIFICATIONS

Main System


CPU Dual-Core Intel ® Atom ™ D525, 1.8GHz
Core Logic Intel® ICH8M
Cache 1MB
Memory 2GB (extendable up to 4GB - 2slot)
Storage 500GB HDD 2.5 "SATA
OS Compatibility Win XP/XPE/POSReady2009/Win7/WEPOS/Linux

Integrated Devices & Sensors


Graphic Card On board
Printer Integrated - 80mm autocutter
Screen or Client Display VFD incorporated, 2x20 lines
Magnetic Card Reader Optional

Communications


Network Card 10/100/1000Mbps
WiFi No (Optional)

Plug-in and Connections


Graphics 1 x DB-15 VGA Interface
Audio 1 x 2W speaker
USB 5 x USB port 2.0
Network 1 x 10/100/1000Mbps
Serial 3 x DB-9(COM 1/2/4), 1 x RJ45(COM3) , 5 V/12V selectables (COM1~3)
Drawer 1 x RJ11 (+12 V ou +24 V selectable) (standard of +24 V)
PS/2 1 x PS/2 (Keyboard Pattern)

Screen and Graphics


Screen 15" TFT Touchscreen
Resolution 1024x768
Viewing Angle 24~30º
Touch Screen 5-wire Analog resistive
Shine 250 cd/m²

Other


Dimentions (WxHxD) 356 x 309 x 167 mm | 14.02" x 12.17" x 6.57"
Weight 5.7Kg (12,5663 lbs)
Power Supply 72~120 W Power Adaptor
Temperature Running: 0ºC~35ºC | Storage: -20ºC~60ºC
Humidity 38~80%
Certifications CE, FCC, KC
