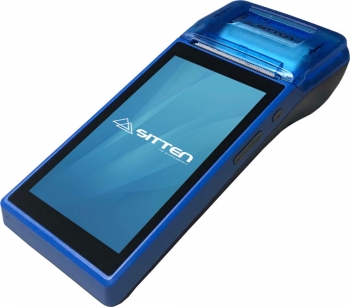

M2 Mobile


Android 6.0, DDR3 1GB,
ROM 8GB, 5,5” Touch Monitor
58mm Thermal Printer, Wireless, 4G.


Basic Information

Type Portable POS with Built-in Printer, WiFi and Bluetooth
Part Number (P/N)  POS1183
Model M2 Mobile
Printer 58mm Thermal Printer
Touchscreen 5,94" TFT LCD 540x960 | Capacitive
CPU Rockchip RK3066,dual-coreA9,1.6Ghz
Memory 1GB DDR3
Storage 8Gb eMMC

Tecnical Specifications

Main System

CPU Rockchip RK3066,dual-coreA9,1.6Ghz
Memory 1GB DDR3
Storage 8Gb eMMC
Operating System Android 6

Integrated devices and Sensors

Printer 58mm Thermal Printer
Magnetic Card Reader No
Sensor G N/D
NFC 13.56MHz,Opearting Distance5~8cm,Support ISO14443, ISO18092
RFID (Smart Card Reader) N/D
Camara 3 mega-pixel camera ,auto-focusing ,Support one dimensional code and qr code scanning
Barcode Reader No


WiFi IEEE 802.11b/g/n
Bluetooth Bluetooth3.0+BluetoothBLE

Support WCDMA/GSM900/DCS1800.Inbuilt PIFA antenna

Input and Output

USB 1x micro USB Otg
Audio 1 x 3.5mm
PSAM card Support 128 digital asymmetric encryption
DC power  1 x Port 9V 2A

Screen and Graphics

Screen 5.94"TFT LCD
Resolution 540*960
Touch Screen Capacitive


Roll Width 58 mm
Maximum Roll Diameter 40 mm
Cut Manual


Battery 7,4V / 2250mAh + Cradle
Certifications FCC, Rohs
Temperature Usage: 0ºC~45ºC | Storage: -10ºC~45ºC
Dimensions 202.9(L)*93.2(W)*56.1(H)mm
Weight 0,520Kg
