PB-A7-US
Thermal Printer
The Sitten A7 is a ticket printer. It is has an added value price/quality ratio. It is very quite, with a printing speed up to 200 mm/s at low costs. It prints 100 Km, 60 million lines and cuts 700.000 times carefree. Anti-jamming mechanism , in other words, it's a solution with very low initial costs as well as low costs in terms of supplies seen that you will only need to replace the roll and it's ready to print.
.jpg)
The Sitten A7 is a ticket printer. It is has an added value price/quality ratio. It is very quite, with a printing speed up to 200 mm/s at low costs. It prints 100 Km, 60 million lines and cuts 700.000 times carefree.
CONSUMABLES
sPECIFICATIONS
| TECHNICAL SPECIFICATIONS |
|
| Type | Thermal printer |
| Part Number (P/N) | POS2035 |
| Model | PB-A7-US |
| Color | Black |
| Printing mode | Direct thermal |
| Printing speed |
200 mm/sec. |
| Cutting type |
Automatic cutting with anti-interlocking mechanism |
| ADVANTAGES | |
| |
High-speed with mechanism with anti-interlocking cut |
| Dual Interface: USB / RS232C incorporated |
|
| Seiko mechanism | |
| high-performance CPU |
| PRINTING FONTS |
|
| FontS |
14x24(42 colunas) / 10x20 (58 columns) |
| Barcodes | EAN-8, EAN-13, CODE39, CODE93, CODE128, ITF, UPC-A, UPC-E, CODABAR |
| Buffer |
4KB |
| Interfaces | Dual Interface USB / série RS232C - Optional: Ethernet |
| Printing speed | 200mm/sec |
| PAPER | |
| Type of paper |
Thermal paper |
| Size | 79.5mm x 83mm roll diameter |
| Thcikness | 0.07mm |
| Drivers | Windows/OPOS |
| Emulations |
ESC/POS/TM88 |
| RELIABILITY | |
| Head lifetime | 100Km |
| MCBF | 60.000.000 lines |
| Cutting mechanism | 700.000 cuts |
| Dimensions | 136x120x162.5mm |
| Temperature | Storage: -20~60ºC |
| |
Running: 0~40ºC |
| Power supply | 24V DC/ 2,5A |
| Certification |
CE,FCC,MIC,ROHS |
CONSUMABLES
 |
|
| Thermal paper - 80x70x11 |
WE ALSO RECOMMEND
|
|
|
|
 |

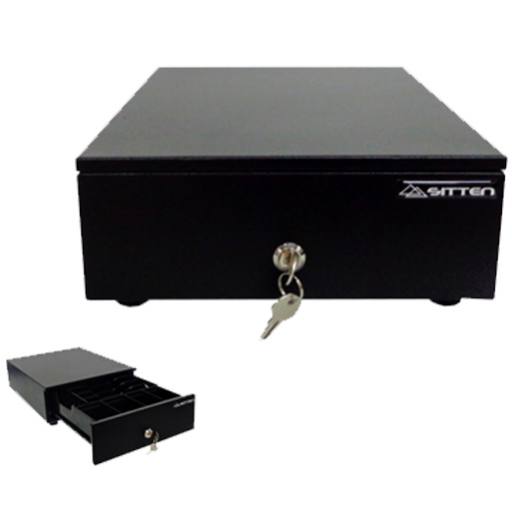

| Drawer 24,5x32x10,5cm Sitten |

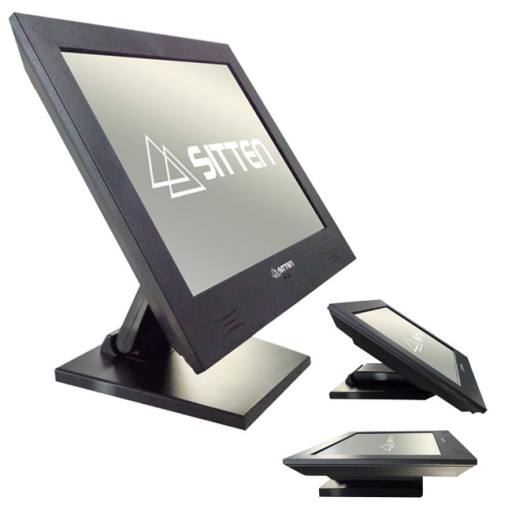

TFT monitor Sitten |

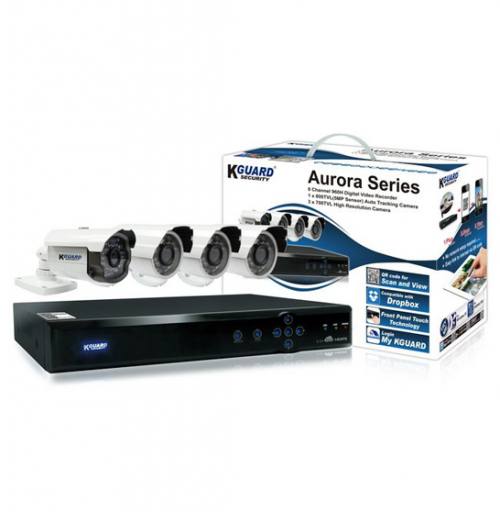

Kit Aurora KGuard |

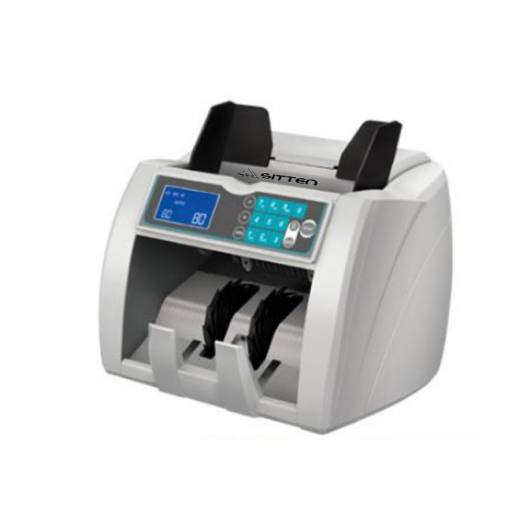

Banking equipement Sitten |
